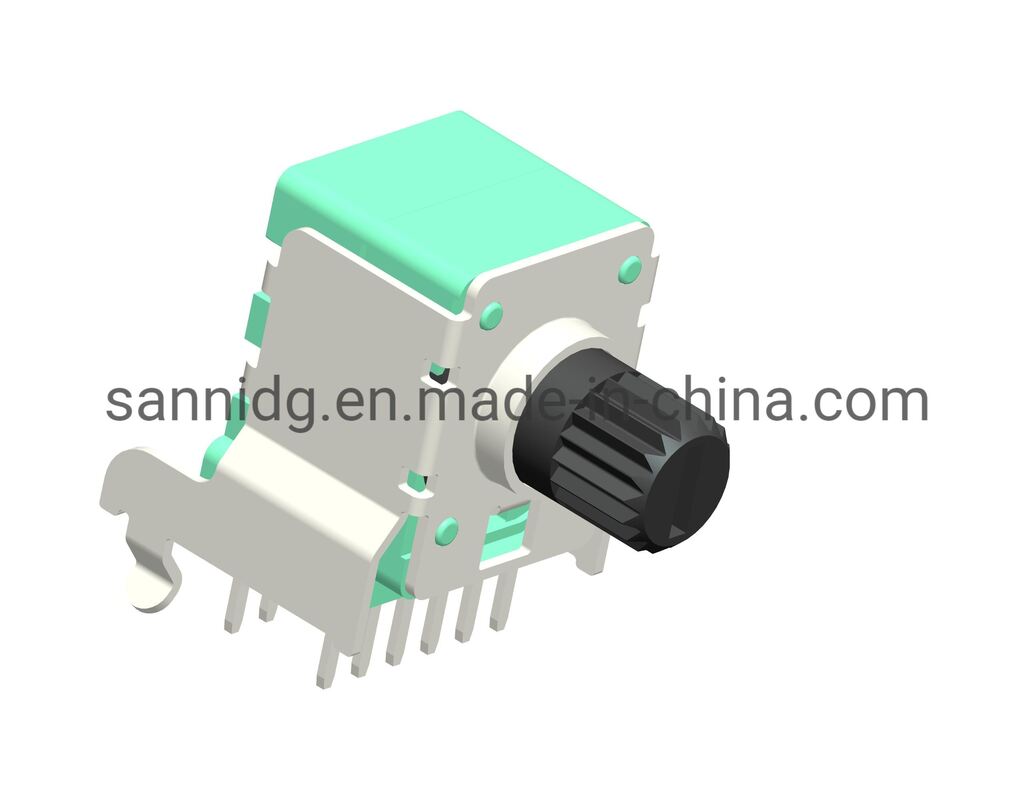

Shaft Diameter 6mm Or Customized Rotary Voltage Divider Potentiometer Single Gang Engineered For Performance In Control Panels

Product Description:

The Rotary Potentiometer is a versatile and reliable component widely used in electronic circuits to adjust voltage levels, control signal outputs, and fine-tune various parameters. As a single gang device, this Rotary Potentiometer is designed to provide precise resistance adjustment through a smooth rotational movement, making it an essential tool for applications requiring variable resistance control.

This Rotary Potentiometer device features a rotational life of up to 10,000 cycles, ensuring long-lasting performance and durability in both industrial and consumer electronics environments. The high cycle count means that users can expect consistent and repeatable adjustments over extended periods, reducing the need for frequent replacements and maintenance. This longevity makes it particularly suitable for applications where frequent tuning or calibration is necessary.

One of the standout features of this product is its versatile shaft type options, which include round, flat, and knurled designs. These shaft variations allow for easy integration with different knobs and control interfaces, catering to diverse user preferences and mechanical mounting requirements. Whether the application demands a smooth round shaft for a sleek finish, a flat shaft for secure knob attachment, or a knurled shaft for enhanced grip, this Rotary Potentiometer accommodates all with ease.

In terms of electrical characteristics, the Rotary Multi-Turn Potentiometer offers a resistance tolerance of ±20%. This tolerance level ensures that the resistance value remains within a predictable range, providing reliable performance in circuits where precise resistance is critical. Although the tolerance is moderate, it is well-suited for many general-purpose applications where exact resistance values are not absolutely critical but stability and consistency are required.

The Rotary Multi-Turn Potentiometer design enables fine adjustment over multiple rotations, allowing users to make incremental changes to resistance with high precision. This feature is especially beneficial in tuning and calibration tasks, where small, accurate adjustments are necessary to achieve optimal circuit performance. The multi-turn capability distinguishes this potentiometer from single-turn variants by offering a greater degree of control, making it a preferred choice for sensitive electronic equipment.

Applications for this Rotary Potentiometer device span across various industries including audio equipment, instrumentation, automotive controls, and consumer electronics. In audio devices, it can serve as a volume control or tone adjustment component, while in instrumentation, it is used for calibrating sensors and measurement devices. Automotive applications include throttle position sensors and dashboard controls, where precise and reliable resistance adjustments are critical for safety and functionality.

Manufactured with quality materials and precision engineering, this Rotary Multi-Turn Potentiometer ensures stable electrical performance and mechanical robustness. The construction guarantees smooth rotational movement without excessive play or wobble, contributing to accurate and repeatable adjustments. Additionally, the device's design minimizes wear and tear on internal components, further extending its operational life and reliability.

Overall, the Rotary Potentiometer is an indispensable component for engineers, designers, and technicians seeking a dependable and precise solution for variable resistance applications. Its single gang configuration, long rotational life of 10,000 cycles, flexible shaft options, and acceptable resistance tolerance make it a versatile choice for a wide range of electronic projects and products. Whether you are developing new electronic devices or maintaining existing systems, this Rotary Multi-Turn Potentiometer provides the performance and durability needed to meet your technical requirements.

In summary, this Rotary Potentiometer stands out as a high-quality, durable, and adaptable solution for resistance adjustment needs. Its multi-turn capability, combined with a robust design and practical resistance tolerance, ensures that it will reliably serve in numerous applications requiring precise and repeatable control. Choose this Rotary Multi-Turn Potentiometer device to enhance the functionality and performance of your electronic systems with confidence.

Features:

• Rotary Adjustable Resistor for precise control
• Rotary Potentiometer Device with PCB Lug terminal type
• Single gang configuration for straightforward functionality
• Adjustable shaft length ranging from 6mm to 20mm, available in normal or customized options
• Durable construction using high-quality plastic and metal materials
• Power rating of 0.05W suitable for low-power applications
• Designed as a Rotary Manual Adjustment Tool for ease of use and reliability

Technical Parameters:

Applications:

The SANNI Rotary Potentiometer, manufactured in Dongguan, China, is a versatile and reliable component widely used in various application occasions and scenarios. As a high-quality Rotary Variable Resistor, it plays a crucial role in adjusting electrical signals by varying resistance through its smooth rotational movement. Its robust design and precise functionality make it ideal for use in electronic devices, industrial machinery, and consumer electronics where accurate control and adjustment of electrical parameters are essential.

One common application of the SANNI Rotary Potentiometer is in audio equipment, where it serves as a volume control knob, allowing users to finely tune sound levels. The Rotary Linear Variable Resistor functionality ensures linear and consistent resistance changes, providing smooth and predictable adjustments. This makes it perfect for use in mixers, amplifiers, and other audio devices.

In addition to audio applications, the SANNI Rotary Electrical Position Sensor is widely implemented in automotive and robotics industries. Its durable construction, featuring a dielectric strength of 500VAC and a rotational life of 10,000 cycles, ensures long-lasting performance even under demanding conditions. The potentiometer’s ability to accurately detect shaft position with a shaft diameter of 6mm or customized sizes allows it to be integrated into steering systems, throttle controls, and robotic joints for precise positional feedback.

The operating temperature range of -25℃ to 85℃ makes the SANNI Rotary Potentiometer suitable for environments with varying temperatures, such as outdoor equipment or industrial control panels. Its low power rating of 0.05W contributes to energy efficiency, making it an excellent choice for battery-powered devices and low-power electronics.

Furthermore, the potentiometer’s customization options for shaft diameter enable it to fit a broad spectrum of mechanical designs, enhancing its adaptability across different platforms. Whether used in home appliances, instrumentation, or medical devices, the SANNI Rotary Potentiometer delivers reliable performance and precise control. Its role as a Rotary Variable Resistor, Rotary Linear Variable Resistor, and Rotary Electrical Position Sensor makes it an indispensable component in modern electronic and electromechanical systems.

Customization:

SANNI offers comprehensive product customization services for our Rotary Potentiometer, a high-quality Rotary Electrical Position Sensor designed and manufactured in Dongguan, China. Our Rotary Electrical Potentiometer is built to operate reliably within a temperature range of -25℃ to 85℃, ensuring optimal performance in various environmental conditions.

We provide customization options for resistance values ranging from 300Ω to 3MΩ, with a resistance tolerance of ±20% to meet your specific application requirements. Our Rotary Electrical Position Sensor features a single gang design and boasts a rotational life of up to 10,000 cycles, guaranteeing durability and long-lasting functionality.

Trust SANNI's expertise to tailor the Rotary Electrical Potentiometer to your precise needs, delivering dependable and accurate position sensing solutions for your projects.

Support and Services:

Our Rotary Potentiometer product is designed to provide precise and reliable control in various applications. For technical support, please refer to the product datasheet and user manual available on our website. These documents include detailed information on specifications, installation instructions, and troubleshooting tips.

If you encounter any issues with the Rotary Potentiometer, ensure that it is installed correctly and operating within the specified voltage and resistance ranges. Common problems often relate to improper mounting, excessive mechanical stress, or exposure to environmental conditions beyond the product's ratings.

We offer comprehensive services including product calibration, repair, and replacement under warranty terms. Regular maintenance is recommended to extend the life of the potentiometer, such as cleaning the wiper and checking for smooth rotation.

For customized solutions or further assistance, our technical support team is ready to provide expert guidance to help integrate the Rotary Potentiometer into your application effectively.

Packing and Shipping:

Product Packaging and Shipping for Rotary Potentiometer

The rotary potentiometer is carefully packaged to ensure safe delivery and optimal protection during transit. Each unit is individually wrapped in anti-static foam or bubble wrap to prevent damage from static electricity and physical impact. The wrapped potentiometer is then placed in a sturdy cardboard box, with additional padding materials such as foam inserts or packing peanuts to minimize movement inside the box.

For bulk orders, multiple units are packed in larger cartons, with dividers to keep each potentiometer separated and secure. All packaging materials used are designed to be environmentally friendly and recyclable wherever possible.

Shipping options include standard ground shipping, expedited shipping, and international delivery. Each shipment is tracked, and customers receive a tracking number to monitor the progress of their order. We work with reliable carriers to ensure timely and safe delivery of the rotary potentiometers to your location.

Before shipping, each product undergoes a final quality check to confirm it meets all specifications and is free from defects. This commitment to quality and careful packaging guarantees that your rotary potentiometer arrives in perfect working condition.

FAQ:

Q1: What is the brand name of this rotary potentiometer?

A1: The brand name of this rotary potentiometer is SANNI.

Q2: Where is the SANNI rotary potentiometer manufactured?

A2: The SANNI rotary potentiometer is made in Dongguan, China.

Q3: What type of applications is the SANNI rotary potentiometer suitable for?

A3: This rotary potentiometer is suitable for various applications including audio equipment, control panels, and other electronic devices requiring adjustable resistance.

Q4: What is the typical resistance range available for the SANNI rotary potentiometer?

A4: The SANNI rotary potentiometer is available in multiple resistance values, commonly ranging from 1k ohm to 1M ohm, depending on your specific requirements.

Q5: How do I install the SANNI rotary potentiometer?

A5: The rotary potentiometer can be installed by mounting it through a panel using the threaded shaft and securing it with the provided nut. Electrical connections are made via the potentiometer’s three terminals according to the circuit design.
